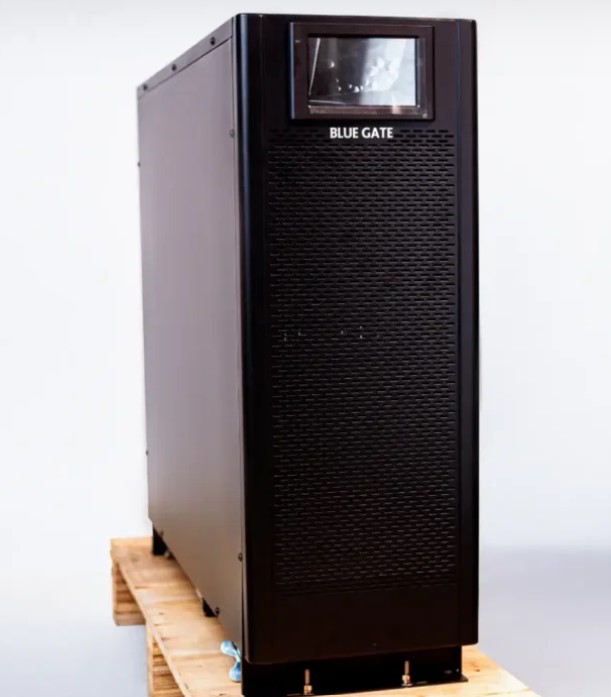

Model Name: BG20.1HF
Capacity: 20KVA
Input Rated Voltage: 380 / 400 / 415Vac; Three-phase five-wire
Input Voltage range: 304-478Vac (Line-Line),full load, 228V-304Vac (Line-Line),load decrease
Input Frequency range: 40-70Hz
Output Voltage: 380/400/415Vac (Line-Line)
Output Frequency: 50/60Hz ±0.1% (battery mode)
Transfer Time: 0ms
Input: Three phase & Ground
Output Power factor: 1
Waveform: Sinusoidal
Net Weight: 145kg
USES: Servers, networks, and IT infrastructure, data centers and large laboratory equipment.
